Lightspeed template

The Lightspeed Custom Action connects your Agent to Lightspeed so it can retrieve order status information and use it when answering customer questions. This setup includes:

A predefined OpenAPI schema for Lightspeed
Authentication through the Lightspeed BaseURL
The required Lightspeed API endpoint
A health check configuration

After setting up the Action, you can validate it, activate it, and test it in the Playground.

Set up the action

Go to Actions in Watermelon.
In the Actions catalog, click Custom action.
Click Create new Action.
Fill in the fields below.

General details

Action name
Lightspeed Order status Retrieval Description
This action lets you get status information from your orders and use it in your chatbot when customers ask for it. BaseURL
https://api-key:api-secret@api.webshopapp.com/language/ Replace:

api-key with your Lightspeed API key
api-secret with your Lightspeed API secret
language with the language used by your Lightspeed store

Authentication

For Authorization Header, select No auth. No additional authentication fields are required, because the API credentials are included in the BaseURL.

Health check

Health check URL
https://www.yourdomain.com/health_check Replace this URL with the health check endpoint you want Watermelon to use. Instruction

You should respond with the following message or a similar variation: Sorry, something went wrong on our end. Can I assist you with anything else? Please let me know how I can help.

Schema

Paste the Lightspeed schema into the Schema field:

openapi: 3.0.3
info:
  title: Orders API
  description: API for retrieving order details
  version: 1.0.0
servers:
  - url: https://api.webshopapp.com/nl
paths:
  /orders.json:
    get:
      summary: Retrieve order details by order number
      description: Retrieve detailed information about a specific order using the order number.
      parameters:
        - in: query
          name: number
          required: true
          schema:
            type: string
          description: The order number to retrieve details for.
      responses:
        '200':
          description: Successful response with order details
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Order'
        '400':
          description: Invalid request
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
        '404':
          description: Order not found
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
        '500':
          description: Server error
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
components:
  schemas:
    Order:
      type: object
      properties:
        id:
          type: integer
          example: 275248911
        createdAt:
          type: string
          format: date-time
          example: 2024-06-18T16:12:07+02:00
        updatedAt:
          type: string
          format: date-time
          example: 2024-06-18T16:46:47+02:00
        number:
          type: string
          example: ORD146123
        status:
          type: string
          example: completed_shipped
        channel:
          type: string
          example: main
        priceExcl:
          type: number
          format: float
          example: 96.32
        priceIncl:
          type: number
          format: float
          example: 116.55
        customer:
          $ref: '#/components/schemas/Customer'
        addressBilling:
          $ref: '#/components/schemas/Address'
        addressShipping:
          $ref: '#/components/schemas/Address'
        payment:
          $ref: '#/components/schemas/Payment'
        shipment:
          $ref: '#/components/schemas/Shipment'
        taxRates:
          type: array
          items:
            $ref: '#/components/schemas/TaxRate'
    Customer:
      type: object
      properties:
        email:
          type: string
          example: mireille.pennings@gmail.com
        firstname:
          type: string
          example: Mireille
        lastname:
          type: string
          example: Pennings
    Address:
      type: object
      properties:
        street:
          type: string
          example: Nobelstraat
        number:
          type: string
          example: 12
        zipcode:
          type: string
          example: 3231 BC
        city:
          type: string
          example: Brielle
        country:
          type: string
          example: Netherlands, The
    Payment:
      type: object
      properties:
        paymentId:
          type: string
          example: billink
        paymentStatus:
          type: string
          example: paid
        paymentTitle:
          type: string
          example: Billink - Achteraf Betalen
    Shipment:
      type: object
      properties:
        shipmentId:
          type: string
          example: core|733716|3053761
        shipmentStatus:
          type: string
          example: shipped
        shipmentTitle:
          type: string
          example: Verzending DHL for you
    TaxRate:
      type: object
      properties:
        name:
          type: string
          example: VAT
        rate:
          type: number
          format: float
          example: 0.21
        amount:
          type: number
          format: float
          example: 20.227199999999996
    Error:
      type: object
      properties:
        message:
          type: string
          example: Invalid order number

Click Validate to check the schema.

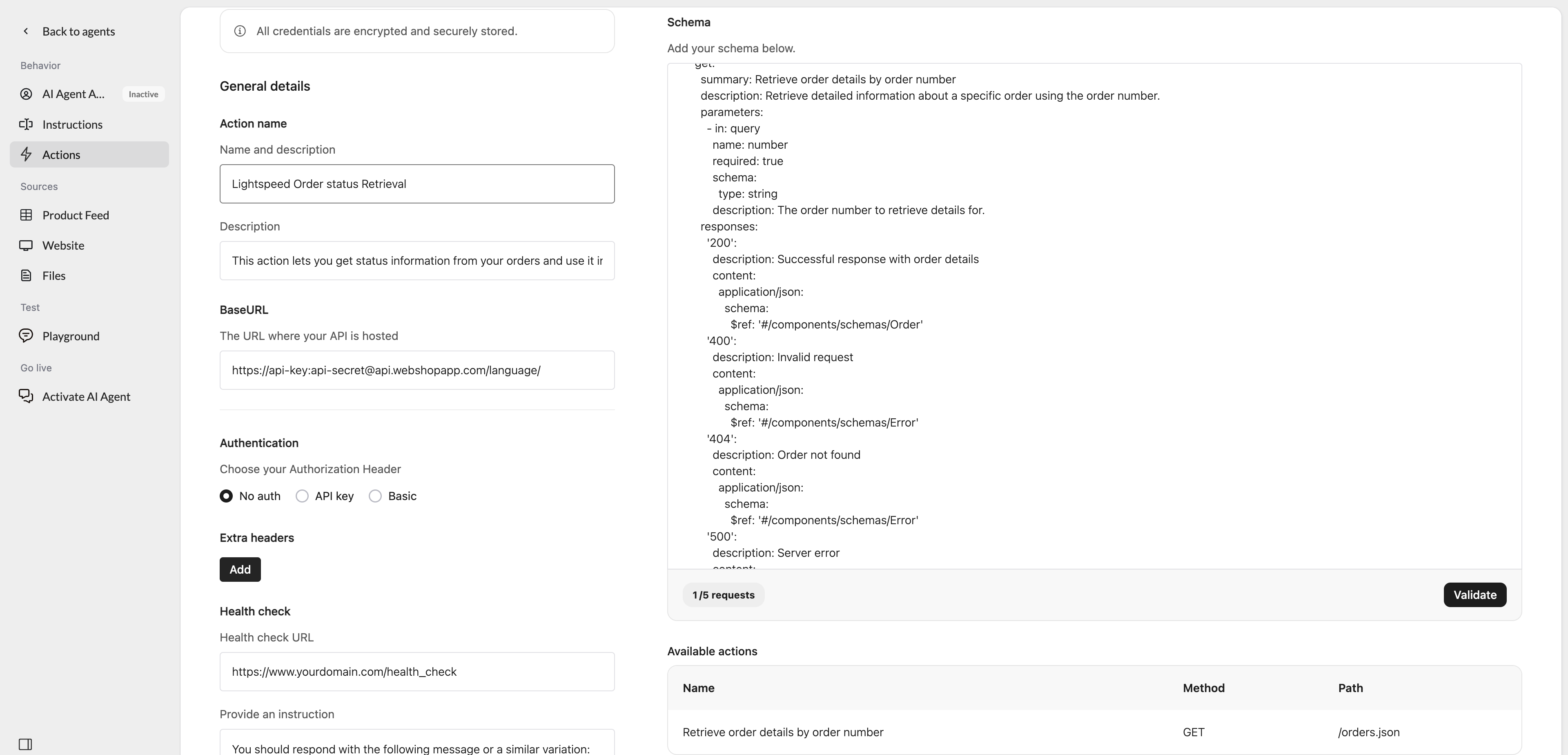

Example in Watermelon

When everything is configured correctly, click Save and then Activate. Finally, test the Action in the Playground to make sure your Agent can retrieve the expected order information from Lightspeed.

Editing an Action Template

After setting up an Action, you can adjust it to your use case. For example, you can add endpoints to the schema, change parameters, or update the name and description. Be careful when changing authentication settings or existing endpoints, as this can prevent the Action from connecting to the API.

Troubleshooting

Issue	Likely cause	What to check
Validation failed	Invalid OpenAPI schema	Check the schema for missing or unsupported fields.
401 Unauthorized	Incorrect API credentials	Check the API key and API secret in your BaseURL.
404 Not Found	Incorrect endpoint or language	Check the BaseURL, endpoint path, and language value.
Action does not return the expected data	Schema or parameter mismatch	Check the endpoint parameters and API response structure.
Health check fails	Health check endpoint cannot be reached	Check the Health check URL and endpoint availability.
