Returnless template

The Returnless Custom Action connects your Agent to Returnless so it can retrieve return and order status information and use it when answering customer questions. This setup includes:

A predefined OpenAPI schema for Returnless
API key authentication
The required Returnless API BaseURL
A health check configuration

After setting up the Action, you can validate it, activate it, and test it in the Playground.

Set up the action

Go to Actions in Watermelon.
In the Actions catalog, click Custom action.
Click Create new Action.
Fill in the fields below.

General details

Action name
Returnless order status Description
This action lets you get status information from your orders and use it in your chatbot when customers ask for it. BaseURL
https://api-v2.returnless.com/2023-01

Authentication

For Authorization Header, select API key. For Auth Type, select Bearer. Token
YOUR-API-KEY Replace this with your Returnless API key.

Health check

Health check URL
https://www.yourdomain.com/health_check Replace this URL with the health check endpoint you want Watermelon to use. Instruction

You should respond with the following message or a similar variation: Sorry, something went wrong on our end. Can I assist you with anything else? Please let me know how I can help.

Schema

Paste the Returnless schema into the Schema field:

openapi: 3.0.0
info:
  title: Returnless Chatbot Integration
  version: 1.0.0
  description: Integration between Returnless and the chatbot to enhance product efficiency
servers:
  - url: https://api-v2.returnless.com


paths:
  /return-orders/{return-order}:
    get:
      summary: Get product status
      description: Retrieve product status by return number
      parameters:
        - name: return-order
          in: path
          required: true
          description: The return number in Returnless
          example: RTR123456
          schema:
            type: string
            pattern: "RTR\\d{6}$"
      responses:
        '200':
          description: Return status retrieved successfully
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/ReturnResponse'
        '400':
          description: No return with that ID found
        '404':
          description: No return ID given


components:
  schemas:
    ReturnResponse:
      type: object
      properties:
        return_id:
          type: string
          example: "948191"
        return:
          type: string
          example: "RENL1641091121"
        status:
          type: string
          example: "processing"
        reference:
          type: string
          example: "ORD000123"
        order_id:
          type: string
          example: "124006"
        order_date:
          type: string
          format: date-time
          example: "2021-01-10 10:46:27"
        return_date:
          type: string
          format: date-time
          example: "2021-01-20 11:52:42"
        updated_at:
          type: string
          format: date-time
          example: "2021-01-21 22:19:58"
        form:
          type: string
          example: "5919"
        customer_id:
          type: string
          example: "58179"
        customer_email:
          type: string
          format: email
          example: "pieter@returnless.com"
        request_id:
          type: string
          example: "481049"
        shipping_description:
          type: string
          example: "PostNL inleveren bij pakketpunt"
        tracking_number:
          type: string
          example: "3STRVL58192041"
        tracking_status_id:
          type: string
          example: "1000"
        tracking_status:
          type: string
          example: "Ready to Send"
        tracking_url:
          type: string
          format: uri
          example: "https://jouw.postnl.nl/track-and-trace/3STRVL58192041-NL-5611NV"
        shipping_label_link:
          type: string
          format: uri
          example: "https://www.returnless.com/shippinglabel/index/?scid=3SRLSS001989339&hash=hsFMhN544bhKD57wk9QDJxjsUJ"
        files:
          $ref: '#/components/schemas/FilesArray'
        return_questions:
          $ref: '#/components/schemas/ReturnQuestionsArray'
        billing_address:
          $ref: '#/components/schemas/BillingAddress'
        return_notes:
          $ref: '#/components/schemas/ReturnNotesArray'
        returned_products:
          $ref: '#/components/schemas/ReturnedProductsArray'


    FilesArray:
      type: array
      items:
        type: string
        format: uri
        example: "https://www.retourneren.nl/sales/download/downloadCustomOption/id/8304498/key/1f96k3FAZG9exk6"


    ReturnQuestionsArray:
      type: array
      items:
        type: object
        properties:
          option_id:
            type: string
            example: "46363"
          label:
            type: string
            example: "Please describe the damage."
          value:
            type: string
            example: "There is a stain on the t-shirt."


    BillingAddress:
      type: object
      properties:
        first_name:
          type: string
          example: "Pieter"
        last_name:
          type: string
          example: "Post"
        postcode:
          type: string
          example: "5611NV"
        country:
          type: string
          example: "NL"
        city:
          type: string
          example: "Eindhoven"
        address1:
          type: string
          example: "PCzn Hooftlaan"
        address2:
          type: string
          example: "14"
        addition:
          type: string
          example: ""


    ReturnNotesArray:
      type: array
      items:
        type: object
        properties:
          message:
            type: string
            example: "The status has been changed from Open to Approved"
          name:
            type: string
            example: "Returnless Support"
          quote_id:
            type: integer
            example: 408516
          created_at:
            type: string
            format: date-time
            example: "2022-05-13 13:29:45"


    ReturnedProductsArray:
      type: array
      items:
        type: object
        properties:
          return_item_id:
            type: string
            example: "1458191"
          product_id:
            type: string
            example: "1007"
          qty_ordered:
            type: string
            example: "1.0000"
          qty_returned:
            type: string
            example: "1.0000"
          qty_received:
            type: string
            example: "0.0000"
          order_product_id:
            type: string
            example: "153397"
          name:
            type: string
            example: "Samsonite S'Cure Spinner 55 navy blue capri"
          title_name:
            type: string
            example: "Samsonite S'Cure Spinner 55"
          model:
            type: string
            example: "trvl-01598592"
          article_code:
            type: string
            example: "495398926"
          cost:
            type: string
            example: "87.50"
          images:
            type: array
            items:
              type: object
              properties:
                http_path:
                  type: string
                  format: uri
                  example: "https://media.travelshop-cdn.nl/product-square-680/339033/image.jpg"
          url:
            type: string
            format: uri
            example: "https://www.travelshop.nl/samsonite-scure-spinner-55-navy-blue-capri.html"
          u_brand:
            type: string
            example: "Samsonite"
          ean:
            type: string
            example: "890128492109899"
          reason_id:
            type: string
            example: "2"
          reason:
            type: string
            example: "Size too small"
          back_to_stock:
            type: string
            example: "1"
          remarks:
            type: string
            example: ""

Click Validate to check the schema.

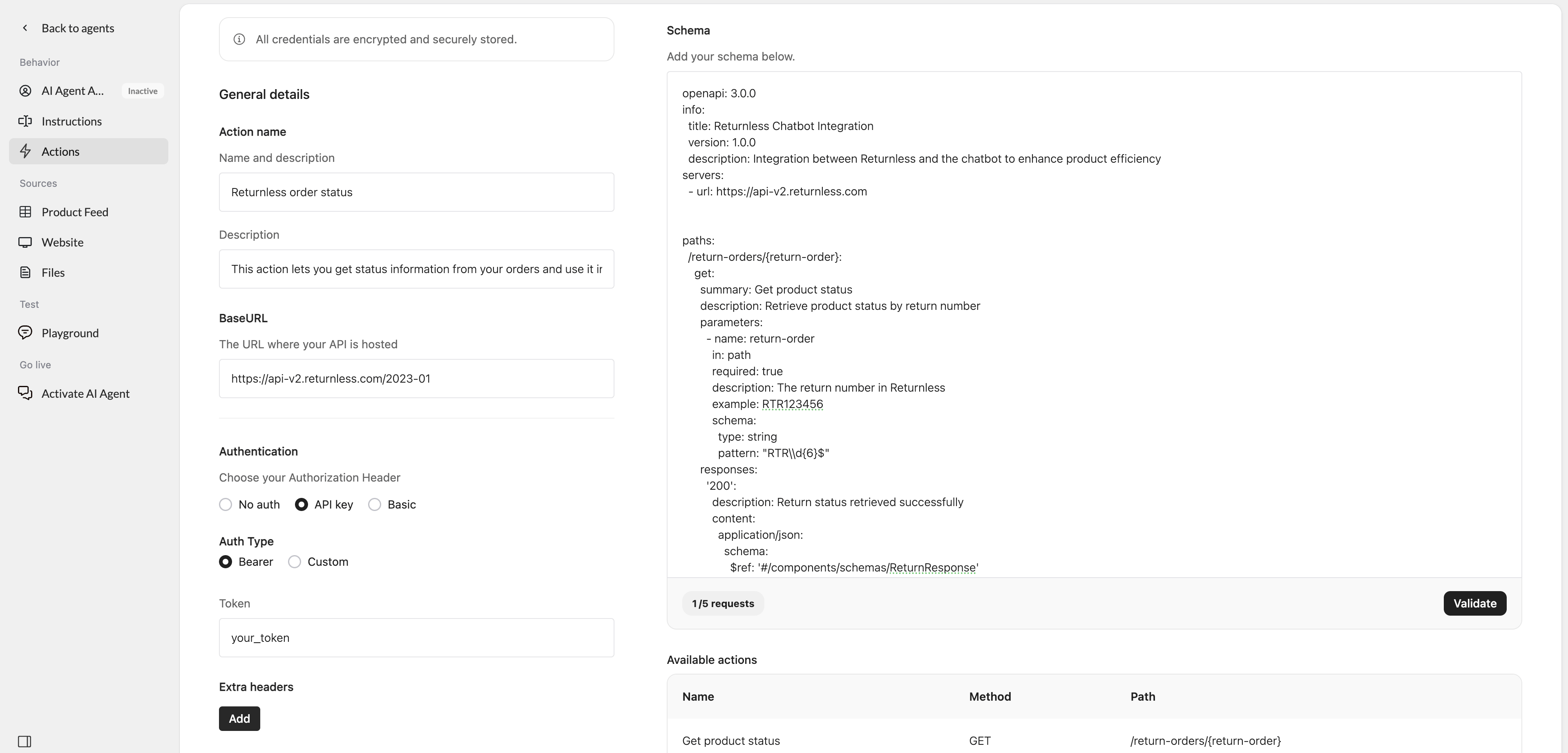

Example in Watermelon

When everything is configured correctly, click Save and then Activate. Finally, test the Action in the Playground to make sure your Agent can retrieve the expected Returnless data.

Editing an Action Template

After setting up an Action, you can adjust it to your use case. For example, you can add endpoints to the schema, change parameters, or update the name and description. Be careful when changing authentication settings or existing endpoints, as this can prevent the Action from connecting to the API.

Troubleshooting

Issue	Likely cause	What to check
Validation failed	Invalid OpenAPI schema	Check the schema for missing or unsupported fields.
401 Unauthorized	Incorrect credentials	Check your API key, token, username, or password.
404 Not Found	Incorrect endpoint	Check the BaseURL and endpoint path.
Action does not return the expected data	Schema or parameter mismatch	Check the endpoint parameters and API response structure.
Health check fails	Health check endpoint cannot be reached	Check the Health check URL and authentication.
